Screen Module - screen​

  • Functions marked with 🌟 will generate a new image object.
  • Functions marked with 📲 will implicitly capture the current screen content when not in Screen Keep State, see Screen Keep for details.

Initialize Rotated Coordinate System (screen.init)​

Declaration​

original_coordinate_system = screen.init(coordinate_system)

Parameters and Return Values​

  • coordinate_system enum
    • 0 indicates portrait mode with HOME at the bottom
    • 1 indicates landscape mode with HOME on the right
    • 2 indicates landscape mode with HOME on the left
    • 3 indicates portrait mode with HOME at the top
  • original_coordinate_system
    • enum, returns the coordinate system used before this function call

Description​

Initializes the coordinate system shared by the Screen Module and the Simulated Touch Module.

info

The following aliases can also achieve the same effect:

screen.init_home_on_bottom()    -- HOME at the bottom
screen.init_home_on_right()     -- HOME on the right
screen.init_home_on_left()      -- HOME on the left
screen.init_home_on_top()       -- HOME at the top

Example​

screen.init
screen.init(0)    -- HOME at the bottom
screen.init(1)    -- HOME on the right
screen.init(2)    -- HOME on the left
screen.init(3)    -- HOME at the top

Get Rotated Coordinate System (screen.orientation)​

Declaration​

coordinate_system = screen.orientation()

Parameters and Return Values​

  • coordinate_system enum
    • 0 indicates portrait mode with HOME at the bottom
    • 1 indicates landscape mode with HOME on the right
    • 2 indicates landscape mode with HOME on the left
    • 3 indicates portrait mode with HOME at the top

Description​

Gets the current coordinate system shared by the Screen Module and the Simulated Touch Module.

note
  • screen.ORIENTATION_HOME_ON_BOTTOM indicates portrait mode with HOME at the bottom
  • screen.ORIENTATION_HOME_ON_RIGHT indicates landscape mode with HOME on the right
  • screen.ORIENTATION_HOME_ON_LEFT indicates landscape mode with HOME on the left
  • screen.ORIENTATION_HOME_ON_TOP indicates portrait mode with HOME at the top

Coordinate Rotation Conversion (screen.rotate_xy)​

Declaration​

rotated_x, rotated_y = screen.rotate_xy(x, y, rotation)

Parameters and Return Values​

  • x, y
    • integer, coordinates to be rotated
  • rotation integer
    • 0 indicates no rotation
    • 1 indicates 90 degrees counterclockwise rotation
    • 2 indicates 90 degrees clockwise rotation
    • 3 indicates 180 degrees rotation
  • rotated_x, rotated_y
    • integer, returns the coordinates after rotation based on the rotation option

Description​

Coordinate rotation conversion, usually used to convert portrait coordinates to landscape coordinates.

Example​

screen.rotate_xy
rx, ry = screen.rotate_xy(100, 200, 1)

Get Screen Size (screen.size)​

Declaration​

screen_width, screen_height = screen.size()

Parameters and Return Values​

  • screen_width integer
  • screen_height integer

Description​

The screen size after iOS system scaling and resampling, in pixels.

info

The return value is not affected by the current orientation of the springboard or application, but is affected by the zoom mode.

Example​

screen.size
-- Determine device type based on resolution
local width, height = screen.size()
if width == 750 and height == 1334 then
  -- Standard mode iPhone 6S, 7, 8
elseif width == 640 and height == 1136 then
  -- Zoom mode iPhone 6S, 7, 8
end

📲 Screen Keep (screen.keep)​

Declaration​

screen_capture_count = screen.keep()

Parameters and Return Values​

  • screen_capture_count
    • integer, returns the number of times the current script process has captured the screen content

Description​

Captures a copy of the current screen content in the current script process and enters Screen Keep State, incrementing the screen capture count.

  • In Screen Keep State, multiple calls to color picking, color finding, screenshot, or image finding functions marked with 📲 will continue to operate based on the kept copy without repeatedly capturing new screen content.
  • In Screen Keep State, the screen capture count will not increase.
  • Call the screen.unkeep function to exit Screen Keep State.
note

Only refreshes the data source for functions marked with 📲, and does not cause the actual screen display to freeze.

Example​

screen.keep
screen.keep()    -- Keep screen
for k = 1, 640, 10 do
  for j = 1, 960, 10 do
    color = string.format("%X", screen.get_color(k, j))  -- Format as hexadecimal text
    sys.log("("..k..", "..j..") Color: "..color..".")    -- Output to system log
  end
end
screen.unkeep()  -- Exit screen keep state
note
  • Consecutive separate calls to screen.get_color for the same position may return different values.
  • In the case of screen.keep, a single call to screen.get_color will take longer than a single call to screen.keep.
  • After calling screen.keep, calling screen.get_color 50 times consecutively will take the same time as calling screen.keep once.

Exit Screen Keep State (screen.unkeep)​

Declaration​

screen_capture_count = screen.unkeep()

Parameters and Return Values​

  • screen_capture_count
    • integer, returns the number of times the current script process has captured the screen content

Description​

Cancels the effect of the screen.keep function and exits Screen Keep State.
After exiting Screen Keep State, each call to color picking, color finding, screenshot, or image finding functions marked with 📲 will capture new screen content, incrementing the screen capture count.

Example​

📲 Get Color of a Point on the Screen (screen.get_color)​

Declaration​

color_value = screen.get_color(x, y)

Parameters and Return Values​

  • x, y
    • integer, coordinates of the target point
  • color_value
    • integer, returns the RGB value of the color at the target point

Example​

screen.get_color
local c = screen.get_color(512, 133)
if c == 0xffffff then
  sys.alert("The color at (512,133) is pure white")
end

📲 Get RGB Color of a Point on the Screen (screen.get_color_rgb)​

Declaration​

red, green, blue = screen.get_color_rgb(x, y)

Parameters and Return Values​

  • x, y
    • integer, coordinates of the target point
  • red, green, blue
    • integer, returns the R, G, B values of the color at the target point, range 0 ~ 255

Example​

screen.get_color_rgb
local r, g, b = screen.get_color_rgb(512, 133)
if r == 0xff and g == 0xff and b == 0xff then
  sys.alert("The color at (512,133) is pure white")
end

📲 Screen Multi-point Color Matching (screen.is_colors)​

Declaration​

is_exact_match = screen.is_colors({
    {x*, y*, color*},
    {x*, y*, color*},
    ...
}[, color_similarity])

Parameters and Return Values​

  • x*, y*
    • integer, coordinates of a point
  • color*
    • integer, color value to match at a point
  • color_similarity
    • integer, optional, similarity of the color, range 1 ~ 100, default 100
  • is_exact_match
    • boolean, returns true if all points match, otherwise returns false

Description​

Matches the colors of several points on the screen.

Example​

screen.is_colors
if screen.is_colors({
  { 509, 488, 0xec1c23 },  -- If the color at (509, 488) is similar to 0xec1c23 by 90% or more
  { 514, 470, 0x00adee },  -- And the color at (514, 470) is similar to 0x00adee by 90% or more
  { 508, 478, 0xffc823 },  -- And the color at (508, 478) is similar to 0xffc823 by 90% or more
  { 511, 454, 0xa78217 },  -- And the color at (511, 454) is similar to 0xa78217 by 90% or more
  { 521, 433, 0xd0d2d2 },  -- And the color at (521, 433) is similar to 0xd0d2d2 by 90% or more
}, 90) then                -- Then it matches
  sys.alert("Match!")
else
  sys.alert("No match!")
end

📲 Multi-point Similarity Mode Color Finding (screen.find_color)​

Declaration​

x, y = screen.find_color({
    [find_all = search_multiple_results],
    [max_results = max_results],
    [max_miss = max_miss],
    {start_x, start_y, start_color[, start_similarity]},
    {offset_x*, offset_y*, offset_color*[, offset_similarity*]},
    {offset_x*, offset_y*, offset_color*[, offset_similarity*]},
    ...
}[, global_similarity, left, top, right, bottom])

Parameters and Return Values​

  • search_multiple_results
    • boolean, optional, if set to true, returns a table of all matching positions within the range, format {{x1, y1}, {x2, y2}, ...}, default false
  • max_results
    • integer, optional, when the find_all (search_multiple_results) tag is set to true, this indicates the maximum number of results to return, up to 1000, default 100
  • max_miss
    • integer, optional, allows the maximum number of unmatched points, default 0, meaning all points must match to be found
  • start_x, start_y
    • integer, starting coordinates, not limiting the search range to this point, but giving a relative coordinate for the offset position, if not understood, fill in 0, 0
  • start_color
    • integer, color to search for at the starting point
  • start_similarity
    • integer, optional, similarity of the color at the starting point, range 1 ~ 100, default 100
  • offset_x*, offset_y*
    • integer, coordinates of an offset position
  • offset_color*
    • integer, color to match at the offset position
  • offset_similarity*
    • integer, optional, similarity of the color at the offset position, range -100 ~ 100, default 100, negative similarity means matching less than the absolute value of the similarity
  • global_similarity
    • integer, optional, if no individual point similarity is set, then each point will use this similarity, range 1 ~ 100, default 100
  • left, top, right, bottom
    • integer, optional, coordinates of the top-left and bottom-right corners of the search area, default full screen
  • x, y
    • integer, returns the coordinates of the first matching color, search failure returns -1, -1

Description​

Uses similarity mode to find (pattern matching) the position of the first fully matching multi-point color structure (pattern) in the area.

note

No body writes this matching table by hand, right?

Example​

screen.find_color
x, y = screen.find_color({
  {  0,   0, 0xec1c23 },
  { 12,  -3, 0xffffff, 85 },
  {  5, -18, 0x00adee },
  { -1, -10, 0xffc823 },
  {  2, -34, 0xa78217 },
  { 12, -55, 0xd0d2d2 },
}, 90, 0, 0, 100, 100)
--
--[[
  In the area with the top-left corner at 0, 0 and the bottom-right corner at 100, 100, find the first point with a color similar to 0xec1c23 by more than 90%
  And its relative coordinate (12, -3) has a color similar to 0xffffff by more than 85%
  And its relative coordinate (5, -18) has a color similar to 0x00adee by more than 90%
  And ... (same for the rest) all match
--]]
--
-- Equivalent code:
--
x, y = screen.find_color({
  { 509, 488, 0xec1c23 },
  { 521, 485, 0xffffff, 85 },
  { 514, 470, 0x00adee },
  { 508, 478, 0xffc823 },
  { 511, 454, 0xa78217 },
  { 521, 433, 0xd0d2d2 },
}, 90, 0, 0, 100, 100)
--
--[[
  In the area with the top-left corner at 0, 0 and the bottom-right corner at 100, 100, find the first point with a color similar to 0xec1c23 by more than 90%
  And its relative coordinate (521-509, 485-488) has a color similar to 0xffffff by more than 85%
  And its relative coordinate (514-509, 470-488) has a color similar to 0x00adee by more than 90%
  And ... (same for the rest) all match
--]]
--
-- Without line breaks and indentation, it looks like this:
x, y = screen.find_color({ {0,0,0xec1c23},{12,-3,0xffffff,85},{5,-18,0x00adee},{-1,-10,0xffc823},{2,-34,0xa78217},{12,-55,0xd0d2d2} }, 90, 0, 0, 100, 100)
--
x, y = screen.find_color({  -- Reverse matching example, can get results on 5C main screen
  { 516,  288, 0xffffff },
  { 519,  286, 0xffffff },
  { 521,  289, 0xffffff },
  { 516,  296, 0xffffff },
  { 522,  297, 0xffffff },
  { 520,  295, 0xffffff, -10 },  -- This point matches if the color is less than 10% similar to 0xffffff, same below
  { 515,  291, 0xffffff, -10 },
  { 518,  284, 0xffffff, -10 },
  { 523,  298, 0xffffff, -10 },
  { 514,  298, 0xffffff, -10 },
  { 514,  296, 0xffffff, -10 },
}, 90)  -- No area parameters means full screen search
--
results = screen.find_color({  -- Range matching full output example
  {  527,  278, 0xde1d26 },
  {  524,  285, 0x007aff },
  {  555,  292, 0xe4ddc9 },
  {  536,  314, 0xffde02 },
  {  502,  291, 0xffde02 },
  {  502,  283, 0xe4ddc9 },
  find_all = true,  -- With this tag, it will return a table of all matching positions within the range, format { {x1, y1}, {x2, y2}, ... }
}, 90)  -- No area parameters means full screen search

📲 Multi-point Color Deviation Mode Color Finding (screen.find_color)​

Declaration​

x, y = screen.find_color({
    [find_all = search_multiple_results],
    [max_results = max_results],
    [max_miss = max_miss],
    {start_x, start_y, {start_color[, start_deviation]}},
    {offset_x*, offset_y*, {offset_color*[, offset_deviation*]}},
    {offset_x*, offset_y*, {offset_color*[, offset_deviation*]}},
    ...
}[, left, top, right, bottom])

Parameters and Return Values​

  • search_multiple_results
    • boolean, optional, if set to true, returns a table of all matching positions within the range, format {{x1, y1}, {x2, y2}, ...}, default false
  • max_results
    • integer, optional, when the find_all (search_multiple_results) tag is set to true, this indicates the maximum number of results to return, up to 1000, default 100
  • max_miss
    • integer, optional, allows the maximum number of unmatched points, default 0, meaning all points must match to be found
  • start_x, start_y
    • integer, starting coordinates, not limiting the search range to this point, but giving a relative coordinate for the offset position, if not understood, fill in 0, 0
  • start_color
    • integer, color to search for at the starting point
  • start_deviation
    • integer, maximum color deviation for the color to search for, greater than 0xff000000 indicates reverse matching mode
  • offset_x*, offset_y*
    • integer, coordinates of an offset position
  • offset_color*
    • integer, color to match at the offset position
  • offset_deviation*
    • integer, color deviation for the offset position, greater than 0xff000000 indicates reverse matching mode
  • left, top, right, bottom
    • integer, optional, coordinates of the top-left and bottom-right corners of the search area, default full screen
  • x, y
    • integer, returns the coordinates of the first matching color, search failure returns -1, -1

Description​

Uses color deviation mode to find (pattern matching) the position of the first fully matching multi-point color structure (pattern) in the area.

note

Color Deviation is used to indicate the range of color deviation. A color with a color deviation means all colors within the red, green, and blue deviation range of that color.
When 0x456789 has a color deviation of 0x123456, it means the red range is 0x45 ± 0x12, the green range is 0x67 ± 0x34, and the blue range is 0x89 ± 0x56.
As shown in the table below, {0x456789, 0x123456} represents all colors from 0x333333 to 0x579BDF.

Negative DeviationPositive Deviation
0x45 - 0x12 = 0x330x45 + 0x12 = 0x57
0x67 - 0x34 = 0x330x67 + 0x34 = 0x9B
0x89 - 0x56 = 0x330x89 + 0x56 = 0xDF

Example​

screen.find_color
x, y = screen.find_color({
  {  0,   0, {0xec1c23, 0x000000} },
  { 12,  -3, {0xffffff, 0x101010} },
  {  5, -18, {0x00adee, 0x123456} },
  { -1, -10, {0xffc823, 0x101001} },
  {  2, -34, {0xa78217, 0x101001} },
  { 12, -55, {0xd0d2d2, 0x101001} },
}, 0, 0, 100, 100)
--
--[[
  In the area with the top-left corner at 0, 0 and the bottom-right corner at 100, 100, find the first point with a color exactly similar to 0xec1c23 (color deviation is 0)
  And its relative coordinate (12, -3) has a color deviation less than 0x101010 from 0xffffff
  And its relative coordinate (5, -18) has a color deviation less than 0x123456 from 0x00adee
  And ... (same for the rest) all match
--]]
--
-- Equivalent code:
--
x, y = screen.find_color({
  { 509, 488, {0xec1c23, 0x000000} },
  { 521, 485, {0xffffff, 0x101010} },
  { 514, 470, {0x00adee, 0x123456} },
  { 508, 478, {0xffc823, 0x101001} },
  { 511, 454, {0xa78217, 0x101001} },
  { 521, 433, {0xd0d2d2, 0x101001} },
}, 0, 0, 100, 100)
--
--[[
  In the area with the top-left corner at 0, 0 and the bottom-right corner at 100, 100, find the first point with a color exactly similar to 0xec1c23 (color deviation is 0)
  And its relative coordinate (521-509, 485-488) has a color deviation less than 0x101010 from 0xffffff
  And its relative coordinate (514-509, 470-488) has a color deviation less than 0x123456 from 0x00adee
  And ... (same for the rest) all match
--]]
--
-- Without line breaks and indentation, it looks like this:
x, y = screen.find_color({ {0,0,{0xec1c23,0x000000}},{12,-3,{0xffffff,0x101010}},{5,-18,{0x00adee,0x123456}},{-1,-10,{0xffc823,0x101001}},{2,-34,{0xa78217,0x101001}},{12,-55,{0xd0d2d2,0x101001}} }, 0, 0, 100, 100)
--
x, y = screen.find_color({  -- Reverse matching example, can get results on 5C main screen
  { 516,  288, {0xffffff, 0x101010} },
  { 519,  286, {0xffffff, 0x101010} },
  { 521,  289, {0xffffff, 0x101010} },
  { 516,  296, {0xffffff, 0x101010} },
  { 522,  297, {0xffffff, 0x101010} },
  { 520,  295, {0xffffff, 0xff101010} },  -- This point matches if the color deviation is greater than 0x101010 from 0xffffff, same below
  { 515,  291, {0xffffff, 0xff101010} },
  { 518,  284, {0xffffff, 0xff101010} },
  { 523,  298, {0xffffff, 0xff101010} },
  { 514,  298, {0xffffff, 0xff101010} },
  { 514,  296, {0xffffff, 0xff101010} },
})  -- No area parameters means full screen search
--
results = screen.find_color({  -- Range matching full output example
  {  527,  278, {0xde1d26, 0x101010} },
  {  524,  285, {0x007aff, 0x101010} },
  {  555,  292, {0xe4ddc9, 0x101010} },
  {  536,  314, {0xffde02, 0x101010} },
  {  502,  291, {0xffde02, 0x101010} },
  {  502,  283, {0xe4ddc9, 0x101010} },
  find_all = true,  -- With this tag, it will return a table of all matching positions within the range, format { {x1, y1}, {x2, y2}, ... }
})  -- No area parameters means full screen search

📲🌟 Capture Screen Content (screen.image)​

Declaration​

screen_content = screen.image([ left, top, right, bottom ])

Parameters and Return Values​

  • left, top, right, bottom
    • integer, optional, represents the screen area to capture, default full screen
  • screen_content image object

Description​

Captures the content of a part of the screen or the entire screen.

Performance

Generates a new image object.
Be sure to call the image:destroy method when the object is no longer needed to release its memory.

Example​

screen.image
screen.image():save_to_album()  -- Capture full screen and save to album
--
screen.image():save_to_png_file("/var/mobile/1.png")  -- Capture full screen and save to file /var/mobile/1.png
--
screen.image(100, 100, 200, 200):save_to_album()  -- Capture the screen area with top-left coordinates at 100, 100 and bottom-right coordinates at 200, 200, and save to album
--
pasteboard.write(screen.image(100, 100, 200, 200):png_data(), "public.png")  -- Capture the screen area with top-left coordinates at 100, 100 and bottom-right coordinates at 200, 200, and write to clipboard

📲 Screen Image Finding (screen.find_image)​

Declaration​

x, y, similarity = screen.find_image(sub_image[, similarity, left, top, right, bottom])

Parameters and Return Values​

  • sub_image
    • image object
    • path-like string
      • Path to the image file to find, if not a valid path, it will be parsed as string data
    • string
      • Image data to find, can be in png or jpeg format
  • similarity
    • integer, optional, similarity of the sub-image to find, range 1 ~ 100, default 95
  • left, top, right, bottom
    • integer, optional, coordinates of the top-left and bottom-right corners of the search area, default full screen
  • x, y
    • integer, returns the coordinates of the top-left corner of the found sub-image, search failure returns -1, -1
  • similarity
    • integer, returns the similarity of the found sub-image to the provided sub_image, range 1 ~ 100, search failure returns 0

Description​

Finds the position of a sub-image on the screen.
Adjusts the sub-image with multiple scaling ratios, from 100% to 20%, to improve the success rate of the search.

Limitation

If multi-resolution compatibility is needed, it is recommended to capture samples on the device with the smallest resolution. Sub-images captured on high-resolution devices may not be found on low-resolution devices.

Example 1​

screen.find_image
x, y = screen.find_image(  -- Original image position top-left: 354, 274 | bottom-right: 358, 284
"\x89\x50\x4e\x47\x0d\x0a\x1a\x0a\x00\x00\x00\x0d\x49\x48\x44\x52\x00\x00\x00\x04\x00\x00\x00\x0a\x08\x02\x00\x00\x00\x1c\x99\x68\x59\x00\x00\x00\x61\x49\x44\x41\x54\x78\xda\x63\x78\xfd\xf4\xda\xff\xff\xff\xff\xfd\xfb\xf7\xed\xcb\x5b\x86\xf7\xaf\x1f\xfc\x87\x01\x86\x2f\x1f\x5f\x02\xa9\xef\xa7\xce\x7c\xdd\xb1\x9b\xe1\xe7\xf7\xcf\x40\xce\xeb\xb2\xea\x7b\xb2\x6a\x0c\x7f\xff\xfe\x01\x72\x9e\x78\x06\x82\x38\x20\xdd\xbf\x7e\xdd\x57\xd4\x82\x72\x7e\xdd\xba\x0d\x64\x41\x39\x08\xd3\x80\x38\x6b\xe3\x7f\x86\x2a\x30\x02\x72\x8c\xa6\x40\x39\x00\xd5\x7b\x5f\x2e\xfd\xba\xd5\x32\x00\x00\x00\x00\x49\x45\x4e\x44\xae\x42\x60\x82", 95, 0, 0, 639, 1135)
note

In Lua source code, strings starting with \x followed by two hexadecimal digits represent a single byte encoded with that number. For example: \x58 represents the character X.

Example 2​

screen.find_image
img = image.load_file("/var/mobile/1.png")
x, y = screen.find_image(img)      -- Find image in full screen range
x, y = screen.find_image(img, 85)  -- Find image in full screen range, similarity 85%

Example 3​

screen.find_image
x, y = screen.find_image("/var/mobile/1.png", 95, 0, 0, 639, 1135)  -- Find image in specified area

Example 4​

screen.find_image
local img = image.load_file("/Applications/MobileSafari.app/AppIcon60x60@2x.png")
if img then
  x, y = screen.find_image(img, 80)  -- Find image in full screen range, similarity 80%
  if x ~= -1 then
    touch.tap(x, y)
  else
    sys.alert("Safari icon not found on the screen")
  end
else
  sys.alert("Unable to read Safari icon")
end

📲 Screen Optical Character Recognition (screen.ocr_text)​

Declaration 1​

text_list, details = screen.ocr_text {
  left = left, top = top, right = right, bottom = bottom,
  languages = language_list,
  words = candidate_words,
  confidence = min_confidence,
  level = recognition_level,
  timeout = timeout
}

Declaration 2​

text_list, details = screen.ocr_text([ recognition_level, timeout ])

Declaration 3​

text_list, details = screen.ocr_text(left, top, right, bottom[, recognition_level, timeout])

Parameters and Return Values​

  • left, top, right, bottom
    • integer, optional, coordinates of the top-left and bottom-right corners of the recognition area. Default full screen
  • language_list
    • enum, optional, list of recognition languages, default { "en-US" }
      • English "en-US"
      • Simplified Chinese "zh-Hans"
  • candidate_words
    • list of texts, optional, used to improve recognition accuracy. Default { }
  • min_confidence
    • integer, optional, minimum confidence of the recognition result, results with confidence lower than this value will be excluded. Range 0.0 ~ 1.0, default 0.0
  • recognition_level enum, optional
    • 0 indicates accurate recognition, more accurate results but slower, default value
    • 1 indicates fast recognition, less accurate results but faster
  • timeout
    • integer, optional, timeout, in milliseconds. Default 3000
  • text_list
    • list of texts, list of recognized text from top to bottom, returns an empty list if no text is recognized in the specified area
  • details
    • list, each element is an associative table, corresponding to the text in text_list, containing the following fields:
      • center list, coordinates of the center of the recognition result { x, y }
      • bounding_box list, bounding box of the recognition result { x1, y1, x2, y2 }
      • confidence float, confidence of the recognition result, range 0.0 ~ 1.0
      • recognized_text text, recognized text
Details Table Structure
{
  [1] = {
    confidence = 0.5,
    center = { [1] = 107, [2] = 289 },
    bounding_box = {
      [1] = 32,
      [2] = 276,
      [3] = 181,
      [4] = 303,
    },
    recognized_text = "Bluetooth",
  },
  [2] = {
    confidence = 1.0,
    center = { [1] = 337, [2] = 603 },
    bounding_box = {
      [1] = 31,
      [2] = 588,
      [3] = 644,
      [4] = 618,
    },
    recognized_text = "To pair an Apple Watch with your iPhone, go to the",
  },
  ...
}

Description​

Uses Apple’s Vision framework to perform text recognition on the screen or image, supporting English and Simplified Chinese.

note

In fast recognition mode, the recognition speed is about 10 times faster than accurate recognition, but the results are less accurate and often contain errors.

screen.ocr_search
screen.ocr_search = function (needle, level)
  if level == nil then
    level = 0
  end
  local center = nil
  local _, details = screen.ocr_text(level)
  for _, v in ipairs(details) do
    if v["recognized_text"] == needle then
      center = v["center"]
      break
    end
  end
  if center == nil then
    return -1, -1  -- not found
  end
  return center[1], center[2]
end

Example screen.ocr_match​

screen.ocr_match
screen.ocr_match = function (pattern, level)
  if level == nil then
    level = 0
  end
  local center = nil
  local _, details = screen.ocr_text(level)
  for _, v in ipairs(details) do
    if string.match(v["recognized_text"], pattern) then
      center = v["center"]
      break
    end
  end
  if center == nil then
    return -1, -1  -- not found
  end
  return center[1], center[2]
end

📲 Tesseract Screen Optical Character Recognition (screen.tess_ocr)​

Declaration 1​

require("image.tesseract")  -- Needs to be loaded in advance
--
text, details = screen.tess_ocr([{
  [lang = language,]
  [white_list = white_list,]
  [black_list = black_list,]
  [left   = left,]
  [top    = top,]
  [right  = right,]
  [bottom = bottom,]
}])

Declaration 2​

require("image.tesseract")  -- Needs to be loaded in advance
--
text, details = screen.tess_ocr([ language ])

Parameters and Return Values​

  • language
    • text, optional, default "eng"
  • white_list
    • text, optional, whitelist of allowed characters
  • black_list
    • text, optional, blacklist of filtered characters
  • left, top, right, bottom
    • integer, optional, coordinates of the top-left and bottom-right corners of the recognition area, default full screen
  • text text
  • details
    • associative table, position description of each visible character in text
Details Table Structure
{
  [1] = {
    confidence = 96.23314666748,
    h = 20,
    x = 64,
    y = 35,
    w = 14,
    text = "7",
  },
  [2] = {
    confidence = 74.24723815918,
    h = 15,
    x = 81,
    y = 38,
    w = 5,
    text = "1",
  },
  ...
}

Description​

  • White List and Black List cannot exist simultaneously, the White List takes precedence.
  • Tesseract OCR language files can be obtained from tesseract-ocr/tessdata or trained by yourself.
  • Prepare the language files and import them into the /var/mobile/Media/1ferver/tessdata directory on the device to use.

Example​

screen.tess_ocr
require("image.tesseract")         -- Needs to be loaded in advance
--
text = screen.tess_ocr()           -- Default is "eng", English recognition
--
text = screen.tess_ocr('chi_sim')  -- Simplified Chinese recognition
--
text = screen.tess_ocr {
  lang = "eng",                  -- English language file
  white_list = "0123456789",     -- Whitelist
}
--
text = screen.tess_ocr {
  lang = "eng",                  -- English language file
  black_list = "abcdefghijk",    -- Blacklist
}
--
text = screen.tess_ocr {
  lang = "chi_sim",              -- Simplified Chinese language file
  white_list = "0123456789.元",  -- Whitelist
}

📲 Screen QR Code Recognition (screen.qr_decode)​

Declaration​

text, details = screen.qr_decode([ timeout ])

Parameters and Return Values​

  • timeout
    • integer, optional, timeout, in milliseconds. Default 3000
  • text
    • text, returns nil if no QR code is recognized within the timeout
  • details associative table
    • center list, coordinates of the center of the recognition result on the screen or image { x, y }
    • bounding_box list, bounding box of the recognition result on the screen or image { x1, y1, x2, y2 }
    • confidence float, confidence of the recognition result, range 0.0 ~ 1.0
    • payload text, text

Description​

Uses Apple’s Vision framework to perform QR code recognition on the screen or image.
Detects the first complete QR code on the screen or image and decodes it. text is the UTF-8 text content obtained from decoding the QR code.

Example: Decode a local QR code image file​

image:qr_decode
local img = image.load_file("/var/mobile/qr.png")
if img then
  local str = img:qr_decode()
  img:destroy()
  if str then
    sys.alert("Recognition successful\nResult: "..str)
  else
    sys.alert("Recognition failed")
  end
else
  sys.alert("Failed to load image file, the file may not exist")
end

Example: Decode the QR code displayed on the current screen​

screen.qr_decode
local str = screen.qr_decode()
if str then
  sys.alert("Recognition successful\nResult: "..str)
else
  sys.alert("Recognition failed")
end

📲 Screen Rectangle Detection (screen.detect_rectangles)​

Declaration 1​

rectangles, details = screen.detect_rectangles {
  left = left, top = top, right = right, bottom = bottom,
  minRatio = min_ratio,
  maxRatio = max_ratio,
  minSize = min_size,
  quadTolerance = max_tilt,
  confidence = min_confidence,
  maxCount = max_count,
  timeout = timeout
}

Declaration 2​

rectangles, details = screen.detect_rectangles([ max_count, timeout ])

Declaration 3​

rectangles, details = screen.detect_rectangles(left, top, right, bottom[, max_count, timeout])

Parameters and Return Values​

  • left, top, right, bottom
    • integer, optional, coordinates of the top-left and bottom-right corners of the detection area. Default full screen
  • min_ratio, max_ratio
    • float, optional, aspect ratio of the detected rectangles, rectangles with aspect ratios outside this range will be excluded. Range 0.0 ~ 1.0, default 0.1, 1.0
  • min_size
    • float, optional, area ratio of the detected rectangles to the screen or image area, smaller rectangles will be excluded. Range 0.0 ~ 1.0, default 0.2
  • max_tilt
    • float, optional, maximum tilt angle of the detected rectangles, rectangles with tilt angles greater than this value will be excluded. Range 0.0 ~ 45.0, default 30.0
  • min_confidence
    • float, optional, minimum confidence of the detected rectangles, rectangles with confidence lower than this value will be excluded. Range 0.0 ~ 1.0, default 0.0
  • max_count
    • integer, optional, maximum number of rectangles to return. Default 1
  • timeout
    • integer, optional, timeout, in milliseconds. Default 3000
  • rectangles
    • table, returns a table of rectangle positions, each element is a list containing eight float elements, corresponding to the four vertices of the detected rectangle, in the order of top-left, top-right, bottom-left, bottom-right
  • details
    • list, each element is an associative table, corresponding to the elements in rectangles, containing the following fields:
      • center list, coordinates of the center of the recognition result on the screen or image { x, y }
      • bounding_box list, bounding box of the recognition result on the screen or image { x1, y1, x2, y2 }
      • confidence float, confidence of the recognition result, range 0.0 ~ 1.0
      • payload list, containing eight float elements, corresponding to the four vertices of the detected rectangle, in the order of top-left, top-right, bottom-left, bottom-right
Details Table Structure
{
  [1] = {
    confidence = 1.0,
    center = { [1] = 372, [2] = 643 },
    bounding_box = {
      [1] = 36,
      [2] = 414,
      [3] = 708,
      [4] = 872,
    },
    payload = {
      [1] = 35.81475187093,
      [2] = 572.14322209358,
      [3] = 548.85265231133,
      [4] = 413.79873716831,
      [5] = 139.88665491343,
      [6] = 872.24944245815,
      [7] = 707.94005692005,
      [8] = 675.78785139322,
    },
  },
  ...
}

Description​

Uses Apple’s Vision framework to detect quadrilaterals (rectangles with eight degrees of freedom) on the screen or image.

Example: Capture a card on the screen and save to album​

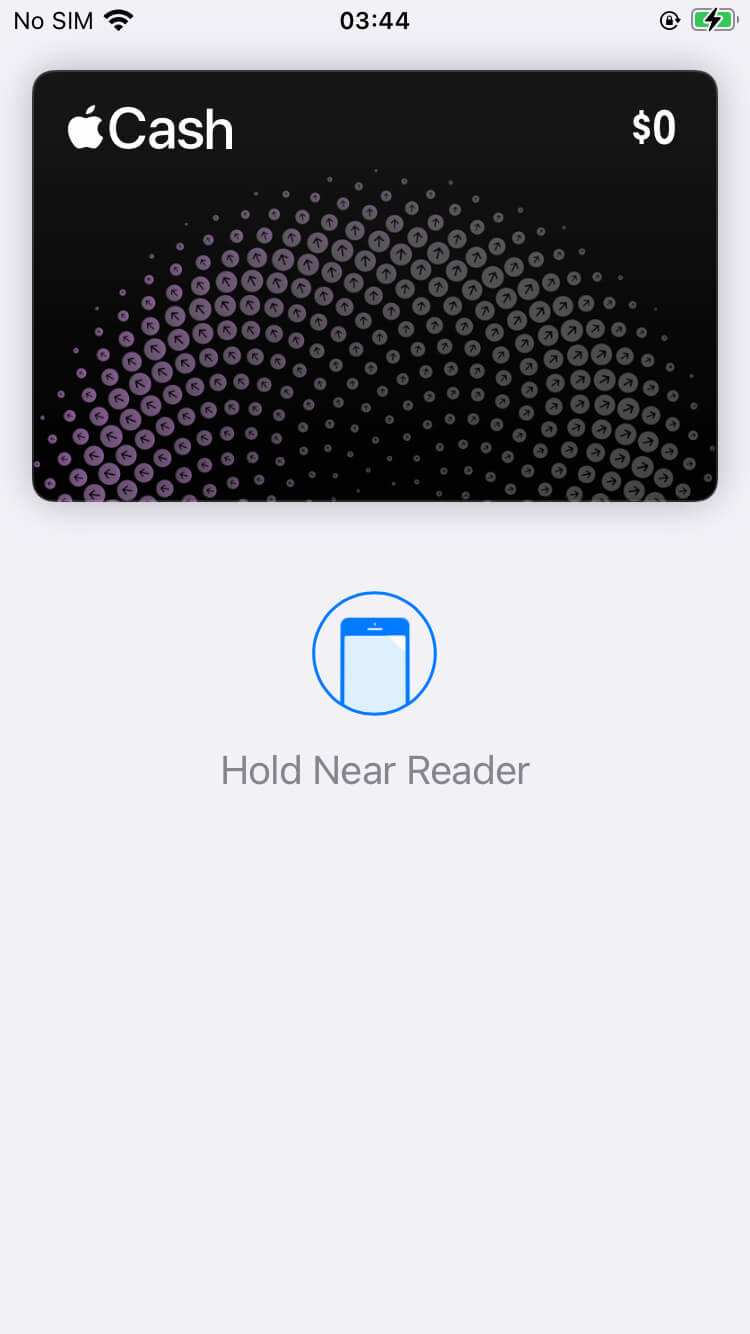

screen.detect_rectangles
rects, details = screen.detect_rectangles()
if #rects > 0 then
  local box = details[1].bounding_box
  screen.image(box[1], box[2], box[3], box[4]):save_to_album()
end

AppleCash.001
